        SB18

        SB18 01.jpg



        ApplicationFeature
        Touring performance

        AES Power RatingWoofer, neodymium magnetic high Sensitivity unit

        Low frequency response extend to 28Hz;Presubwoofer Limiting Technical

        Combined inverted phase and preamplifier cabinet design

        100mm voice coil high transient high power woofers

        Ergonomic pull-out handles on both sides

        Resistant nylon strips protection

        Thick and elastic hearing

        stadiums
        theaters



        Technical specification

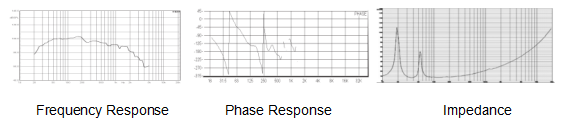

        Frequency Respond30 Hz ~ 180 Hz(±3 dB) ;  25 Hz ~ 250 Hz(-10 dB)
        Nominal Coverage(- 6 dB)Omnidirectional
        Sensitivity(@1w/1m)100 dB SPL
        Power rating1200 W
        Impedance8ohm
        Maximum SPL130dB/140dB SPL peak
        TransducersLF:1x18" All Condition Woofer




        Physical data

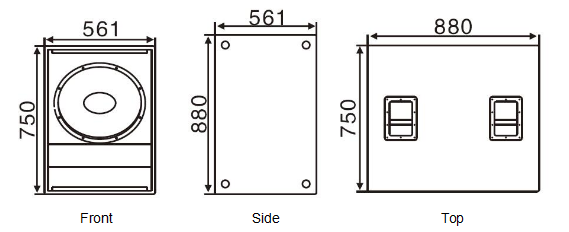

        Dimension561x880x750mm
        Weight48Kg
        Speaker CablesWP4:1-2+,NL4:1+1-
        ConnectorsWP4*2 NEUTRIK NL4MP*2
        Materials

        Imported multi-plywood Environmental waterproof

        AND ANTI-CORROSION COATINGS

        FinishBlack Polyurea paintings
        GrillePorous steel mesh with black spraying
        Installation4 handles, M20 top bracket
        MeshDPR (Double perforation Rate) double perforation rate technology design, in which the perforation rate of the mid-high transmitting area is more than 90%, which greatly improves the sound transmission efficiency and reduces the acoustic crosstalk of the grille.
