        LS110S


        Applications

        Feature


        Touring performance

        Small enclosure, light weight

        Small volume inverted phase combined with preamplifier cabinet design

        3" Voice Coil High Transient Woofer

        Dual 15-inch rubber-rimmed neodymium-iron-boron active subwoofers

        Used with 1-4 LS110 line array speakers

        With hanging parts, can be stacked, can be suspended

        Physical Data Same as LS110

        With WCT wavefront coupling technology

        Configuration WPE Wavepath Equal Distance Sound Guide

        Theatre

        Church

        Multipurpose hall


        Technical parameters

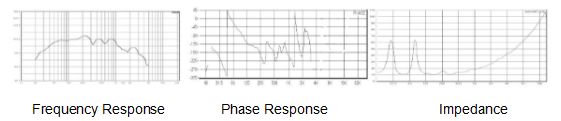

        Frequency response38 Hz-200 Hz(+3dB)；30 Hz-320 Hz(-10dB)
        Nominal directivity(-6dB)

        Omnidirectional


        Sensitivity (@1w/1m)

        100dB SPL


        Power Rating1000W

        Impedance8ohm
        Maximum SPL

        130dB/140 dB SPL peak


        Transducers

        LF:2x15" All Condition Woofer


        Physical data

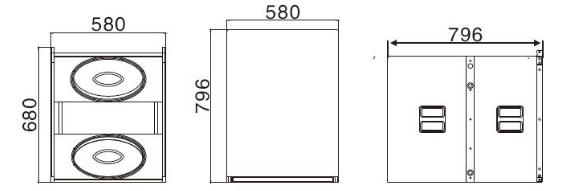

        Dimensions

        580x796x680mm


        Weight60Kg
        Connectors

        WP4*2,NEUTRIK NL4MP*2


        Speaker CablesWP4:1-2+ NL4:1+1-
        MaterialImported multi-plywood Environmental waterproof and anti corrosion coatings
        Finsh

        Black polyurea paintings


        Grille

        Black epoxy mesh grille with acoustically reticulated cloth

        MeshDPR (Double perforation Rate) double perforation rate technology design, in which the perforation rate of the mid-high transmitting area is more than 90%, which greatly improves the sound transmission efficiency and reduces the acoustic crosstalk of the grille.
        Angles

        5、0、-5、-10°Adjustable
