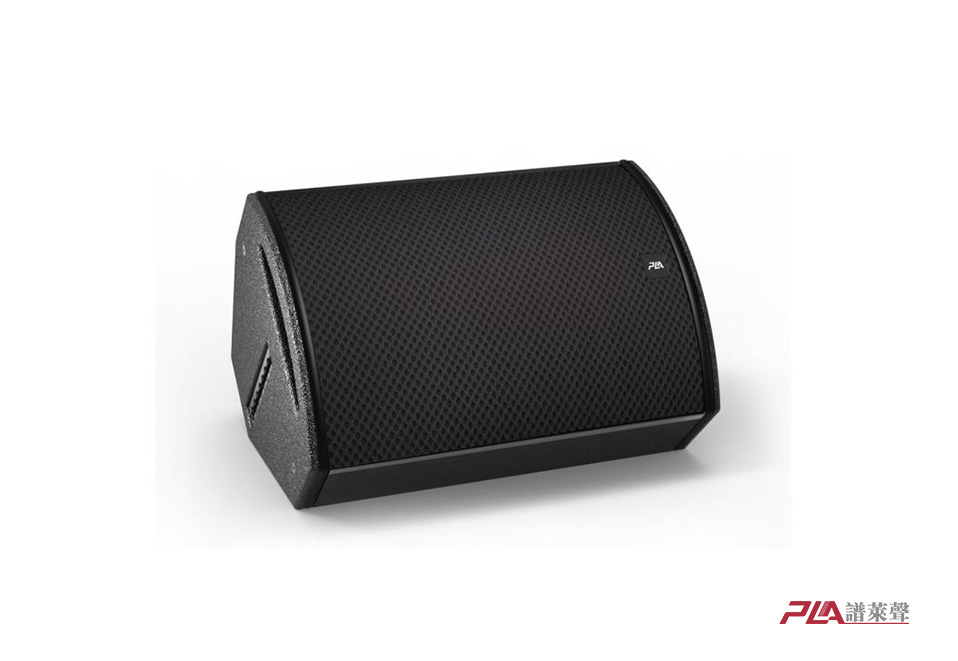

CS12

Features:

1. Coaxial construction to optimize directivity near the crossover point

2. 3"Phase Correction Neodymium magnetism HF compression driver

3. Fequency response was designed according to the monitor performance which can solved the problems of howling in the sound field

4. With CPS(Coaxia l Point Source) technology

Technical parameters:

Frequency response: 60 Hz~18 kHz (± 3 dB) 45 Hz~20 kHz (-10 dB)

Nominal directivity (-6dB): 80°(cone)

Sensitivity (@ 1W/1m): 96 dB SPL

Power Rating: 400W

Impedance: 8 ohms

Maximum SPL: 122 dB/132 dB SPL peak

Transducers: LF:1x12" All Condition Woofer

                     HF:1x3"Phase Correction HF compression driver

Physical data:

Dimensions: 395x395x600mm

Weight: 25 kg

Connectors: WP4*2，NEUTRIK NL4MP*2

Speaker Cables: WP4:1-2+ Or NL4:1+1-

Material: Imported multi-plywood Environmentalwaterproof and anti-corrosion coatings

Finish: Black Polyurea paintings

Cover：Black epoxy mesh grille with acoustically reticulated cloth

Grille: DPR(Double Perforation Rate )technology design, in which theperforation rate of the middle and high transmission area ismore than 90%,Greatly improves the sound transmissionefficiency and reduces the acoustic crosstalk of the surfacegrid.
