S12P

Features:

Uses one high-efficiency 12-inch ferrite woofer

Three-channel 500W @ 4 ohm + DSP active module

Selfpowered full range speaker

Long throw rubber edge LF driver

Elastic bass

Top support stand for flexible connection to other full-range satellite speakers

Extremely compact , Small enclosure

Technical parameters:

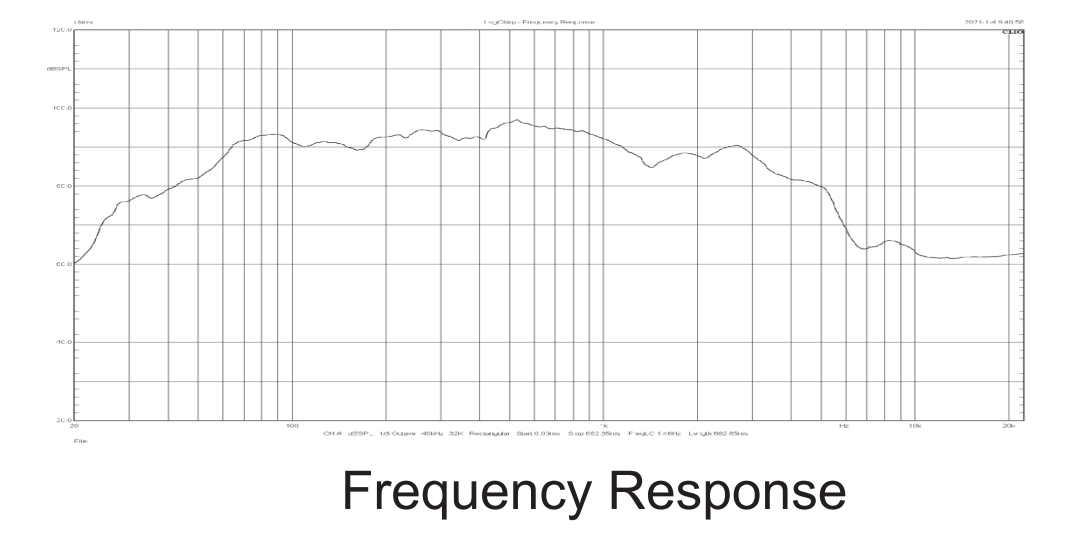

Frequency response: 45Hz~150Hz(±3dB),35Hz~120Hz(-10dB)

Standard directionality (-6dB): Omnidirectional

Active module: Three-channel 500W @ 4 ohm + DSP active module

Gain: 32dB

Crosstalk (1KHz):<-70dB

Impedance: 20K Ω balanced/10K Ω unbalanced

THD+N:<0.05% (0.1w to 1/2)

SNR:>95dB

CMRR:>50dB

Maximum SPL: 120 dB/130 dB peak

Power Requirement: 200-240VAC 50Hz

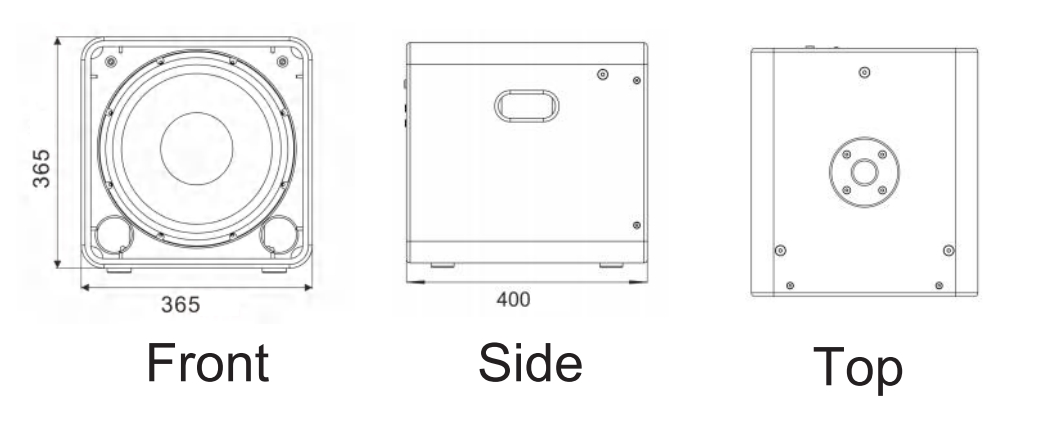

Dimensions: 365 x 400 x 400mm

Weight: 27 kg

Material: Imported multi-plywood Environmental waterproof and anti corrosion coatings

Finish: Black polyurea paintings

Grille: Black epoxy mesh grille with acoustically reticulated cloth

Riging: Top support

Application:

Meeting room, Background music
