S10P

Features

Elastic bass

Selfpowered full range speaker

Long throw rubber edge LF driver

Top support stand for flexible connection to other full-rang

Technical Specification

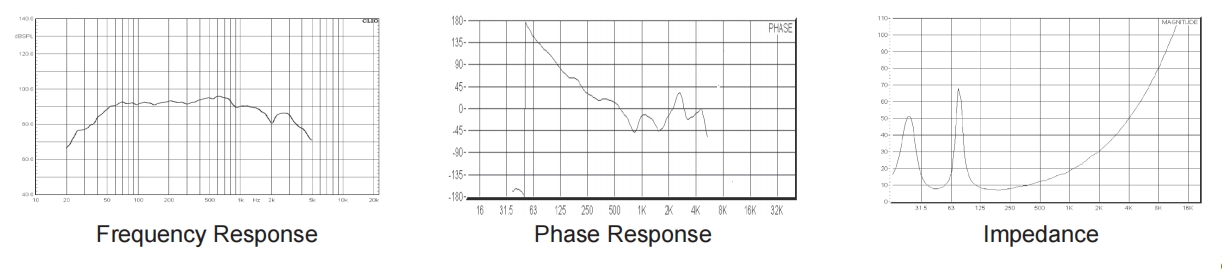

Frequency response: 40 Hz~180 Hz (± 3 dB); 30 Hz~250 Hz (-10 dB)

Nominal directionality (-6dB): Omnidirectional

Power specifications: 100-240V 50/60Hz

Power rating: 1200W

Impedance: 8 ohm

Maximum SPL: 116 dB/126 dB SPL peak

Transducers: LF:1x10" All Condition Woofer

Power Input

Line in: XLR XLR female seat, 0.775V/20K Ω balanced

Link out: XLR XLR male seat, 0.775V/20K Ω balanced

Electronic Crossover: 80-250Hz, adjustable

Polarity control: Phase 0/180°

Physical Data

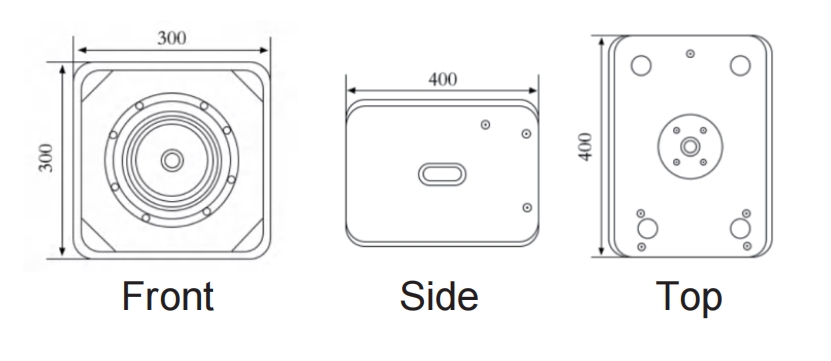

Dimensions: 400 × 300 × 300 mm

Weight: 12 kg

Material: Imported multi-plywood Environmental waterproof and anti corrosion coatings

Finish: Black Polyurea paintings

Cover: Black epoxy mesh grille with acoustically reticulated cloth

Applications

Turing performance、Stadiums, Theaters
