        LS208


        ApplicationsFeature

        Touring performance

        Theatre

        Church

        Multipurpose hall

        Extremely compact , Small enclosure, light weight;Configuration of WPE wavepath equidistant acoustic guide

        All neodymium high sensitivity unit,great dynamic margins
        With WCT (Wavefront Coupling Technology)
        With APS angle preset function

        		With FMM monitor mode technology and +15° front panel angle adjustment


        Technical parameters

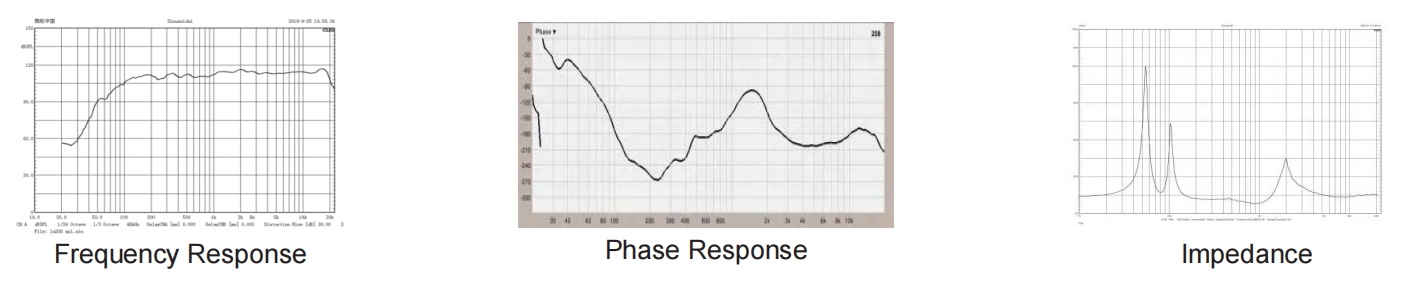

        Frequency response

        60 Hz ～ 16 kHz (±3dB)；50 Hz ～ 18 kHz（-10dB）

        Nominal directivity(-6dB)

        100°(H)


        Sensitivity (@1w/1m)HF/LF: 110dB SPL/ 96dB SPL
        Power RatingHF/LF:120W/500W(AES)
        ImpedanceHF/LF: 16/16 ohm
        Maximum SPL

        HF:136 dB SPL peak

        LF:130 dB SPL peak


        Transducers

        LF:2x8" All Condition Woofer

        HF:1x3" Phase Correction compression driver


        Physical data

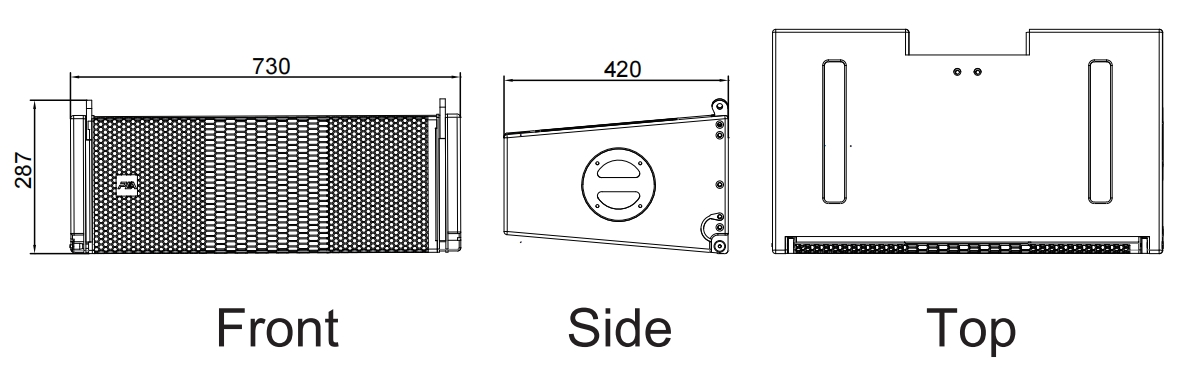

        Dimensions730x420x287mm
        Weight23.5 kg
        ConnectorsNEUTRIK NL4MP*2
        Speaker Cables1+1-...
        MaterialImported multi-plywood Environmental waterproof and anti corrosion coatings
        FinshBlack Polyurea paintings
        Grille

        DPR(Double Perforation Rate )technology design, in which theperforation rate of the middle and high transmission area ismore than 90%,Greatly improves the sound transmissionefficiency and reduces the acoustic crosstalk of the surfacegrid.

        Angles

        0、1、2、3、4、5、6、7、8、9、10°Adjustable
