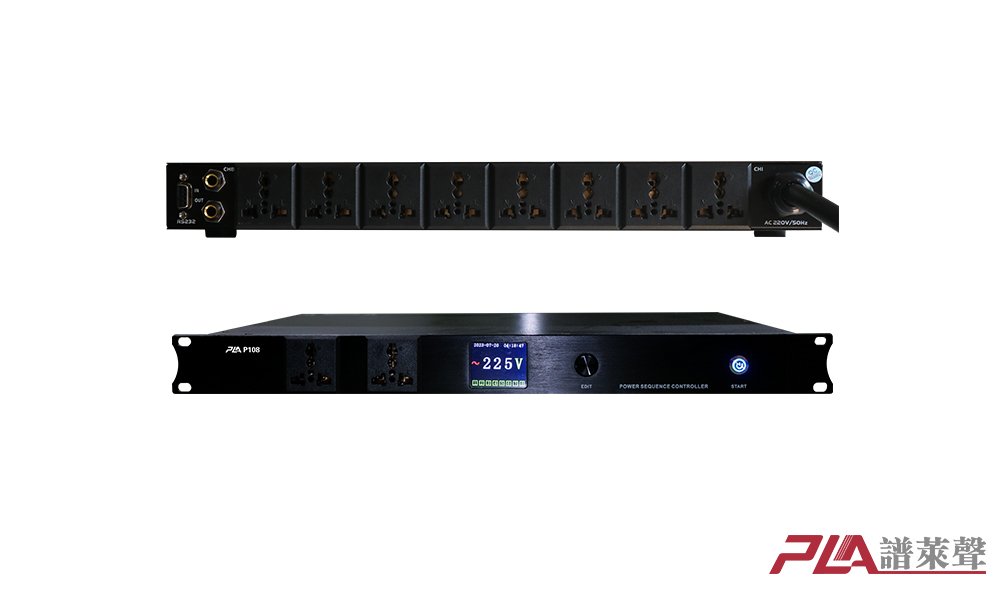

P108 Timing device

P108 Power timing device

This machine is a compact and powerful intelligent sequencer with DSP as the processor; it combines the functions of a variety of conventional products in a box of only 1U rack height.

Technical features:

P108 time sequence power switch, the use of multiple output socket work by the microcomputer control, to achieve independent sequential switching output power and cascade control work.
P108 in all power output can also be used after the output of the"channel switch" key, instantly turn on and off the output of any power supply to facilitate the handling of a device alone in the event of an emergency.
P108 is very convenient in multiple cascade, as long as the control signal cable to connect each unit can be connected, but must pay attention to: considered as a secondary timing power controller's power switch must be played to the "OFF / off" position, otherwise it will lead to loss of control.
The P108 also provides two auxiliary output sockets on the front panel, which are very convenient for maintenance and test runs.
Adoption of multiple output sockets is controlled by microcomputer.
After all power outputs are turned on, you can also use the "channel switch" to connect the keys.
Each unit has its own ID setting and detection, and can be controlled remotely and centrally.
Multiple units can be cascaded easily.
Two auxiliary output sockets for maintenance are provided on the front panel.

Technical parameters:

Channel parameters: 8

Auxiliary channel parameters: 2

Power capacity per channel: 220V/15A, 3300W/CHANNEL

Timing switch interval: 1 SECRETARY

Connected: ALLDW

Lighting voltage: AC/12V

Control: LAMP-ON SWITCH, BYPASS-BUTTON

Connecting line: 3-CORE, MICROphones

Indicator light: POWER/CHANNEL ON/BYPASS

Input and output sockets: WONPRO STANDARD, THREE WIR AC

Control Signal Connectors: TRS
