LS110P

Applications	Feature
Touring performance	Dual 15-inch rubber-rimmed neodymium-iron-boron active subwoofers
Theatre	Three Channel Amplifier Module(Maximum 4700W)
Church	Can promote 1-4 LS110 Line Array Speacker
Multipurpose hall	With hanging parts, can be stacked, can be suspended
	Dimensions appearance is identical to the LS110S

Technical specification

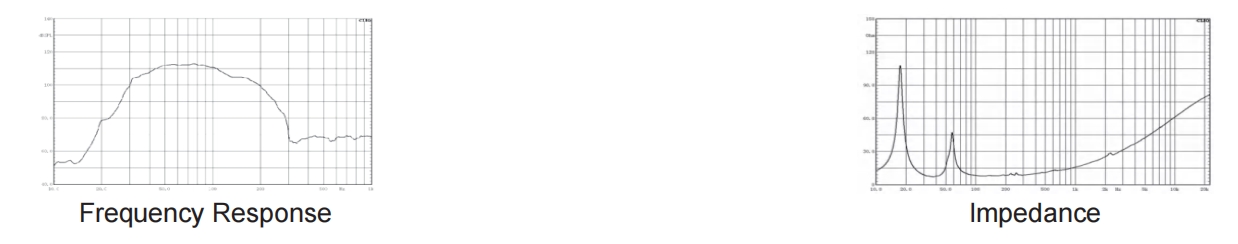

Frequency Response	38Hz-100KHz(±3dB) 30Hz-120KHz(-10dB)
Power Rating(AES)	1000W
Transducers	LF:2x15" All Condition Woofer
Maximum SPL	127dB/137dB SPL peak
Power Rating	Inside 700W+2x2000WSelf-poweredAmplifier
THD+N	≤1%(1kHz,Full power 4Ω)
SNR	≥103 dB
Gain (1kHz 8Ω)	20 dB(CH1),32dB(CH2、3)
Input connectors	XLR Female input /Male output
Impedance	20 kΩBalanced/10 kΩUnbalanced
Output connectors	NL4MP(1+/1-;LF/2+/2-;HF)
Output Electric Circuit	Class D circuit

Physical data

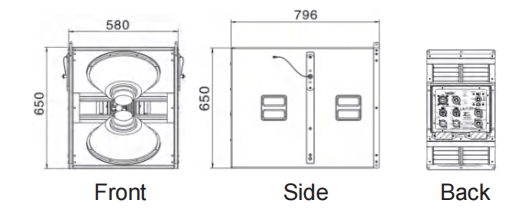

Dimensions	580x796x650mm
Weight	64 kg
Connectors	NEUTRIK NL4MP*2
Speaker Cables	1+1-
Material	Imported multi-plywood Environmental waterproof and anti corrosion coatings
Finish	Black Polyurea paintings
Grille	Black epoxy mesh grille with acoustically reticulated cloth
Mesh	DPR (Double perforation Rate) double perforation rate technology design, in which the perforation rate of the mid-high transmitting area is more than 90%, which greatly improves the sound transmission efficiency and reduces the acoustic crosstalk of the grille.
