        LM12



        ApplicationsFeature
        Touring performanceFrequency response special design to avoid auditory fatigueTouring performance,Theatre, Music hall 、Dual purpose return and main expansion
        Theatre, Music hallAsymmetrical rotatable horn
        Dual purpose return and main expansion3"Phase Correction HF compression driver

        		With PCT(Phase Coherent Technology) technology



        Technical parameters

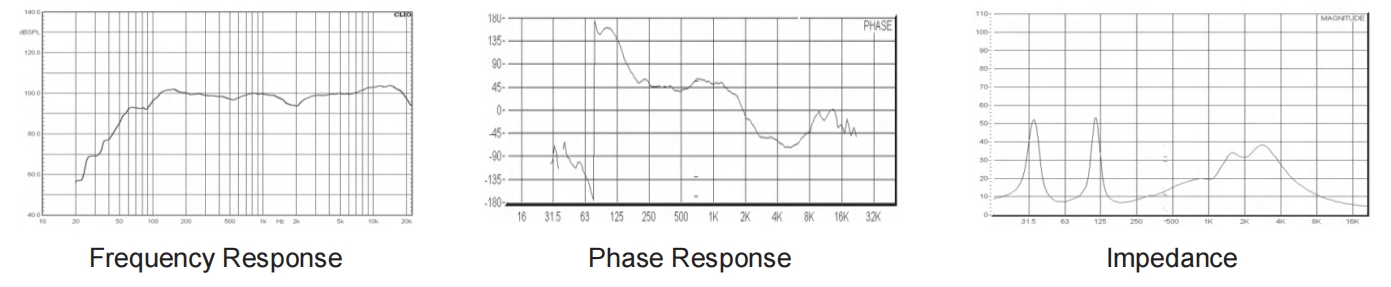

        Frequency response65 Hz-18 kHz(+3dB) 55 Hz-20 kHz(-10dB)
        Nominal directivity(-6dB)60°(H)×40°(V) Constant directivity
        Sensitivity (@1w/1m)98 dB SPL
        Power Rating400W
        Impedance8ohm
        Maximum SPL124dB/134dB SPL peak
        Transducers

        LF:1x12" All Condition Woofer

        HF:1x3"Phase Correction HF compression driver



        Physical data

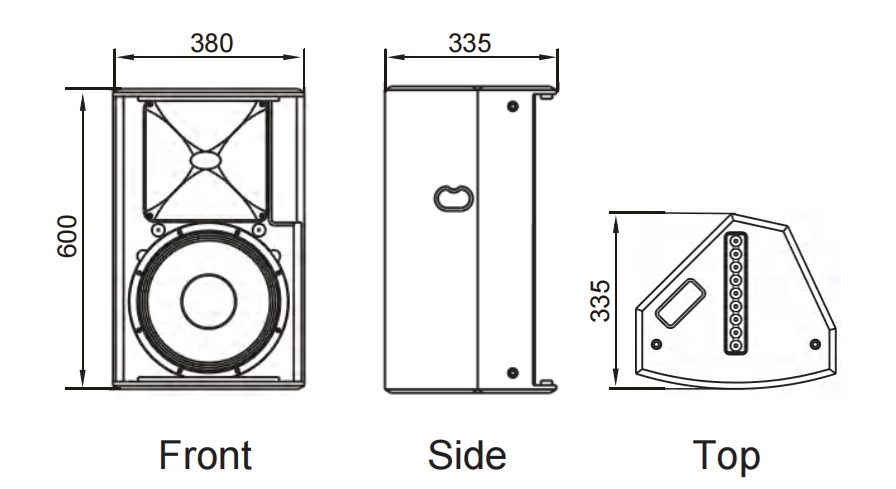

        Dimensions380x335x600mm
        Weight22Kg
        ConnectorsWP4*2,NEUTRIK NL4MP*2
        Speaker CablesWP4:1-2+,NL4:1+1-
        MaterialImported multi-plywood Environmentalwaterproof and anti-corrosion coatings
        FinshBlack Polyurea paintings
        CoverBlack epoxy mesh grille with acoustically reticulated cloth
        Grille

        DPR(Double Perforation Rate )technology design, in which the perforation rate of the middle and high transmission area is more than 90%,Greatly improves the sound transmission efficiency and reduces the acoustic.
