PC10

	Feature
	Phase Coherent Technology

Technical parameters

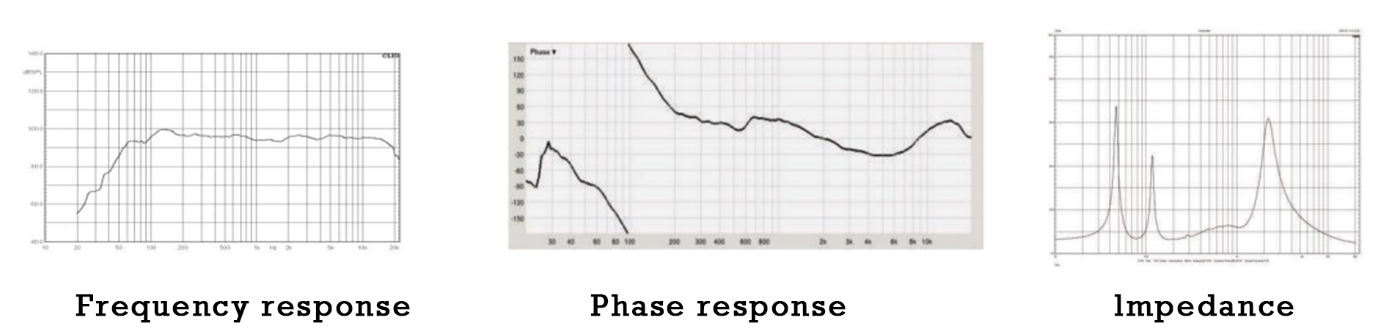

Frequency response	70 Hz ~ 18 kHz (±3 dB )：55 Hz ~ 20 kHz (-10 dB )
Nominal Coverage(-6dB)	100°（H） 55°(V) Constant directivity
Sensitivity (@1w/1m)	95 dB SPL
Power Rating （AES）	300W
Nominal Impedance	8ohm
Max SPL	120dB/126dB SPL peak
Drivers	LF 1 x 10"（75mm voice coil）woofer HF 1 x 44mm voice coil compression driver

Physical data

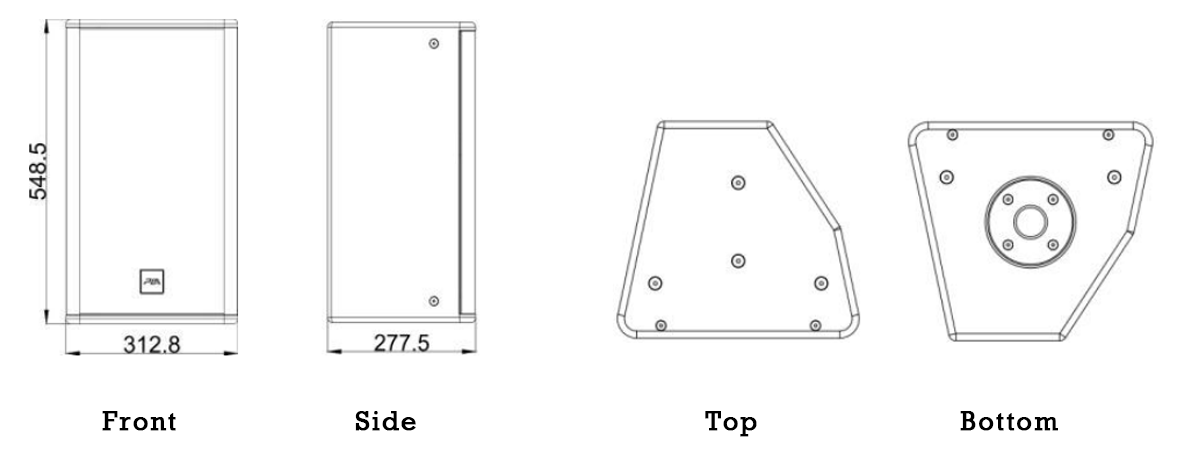

Dimensions	548.5 x 312.8 x 277.5 mm
Weight	19Kg
Connectors	2 x NL 4MP Neutrik Speakon connectors
Speaker Cables	1+1-
Materials	Birch wood panels with environmentally friendly PUA polyurea waterproof and anticorrosive coating on the surface
Finsh	Black polyurea paintings
Grille	DPR (Double perforation Rate) double perforation rate technology design, in which the perforation rate of the mid-high transmitting area is more than 90%, which greatly improves the sound transmission efficiency and reduces the acoustic crosstalk of the grille.
