Dual-purpose for mobiles performances

Coaxial construction to optimize directivity near the crossover point

returns and main expansion

3"Phase Correction Neodymium magnetism HF compression driver

Fequency response was designed according to the monitor performance which can solved theproblemsof howling in the sound field

With CPS(Coaxia l Point Source) technology

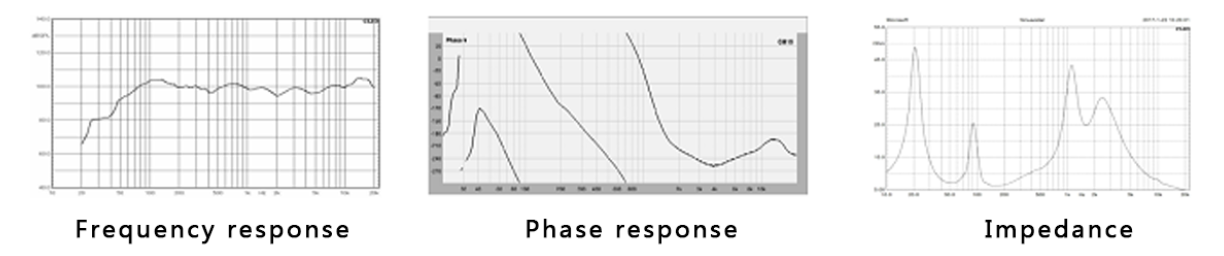

Frequency Response

50 Hz ~ 18 kHz(±3 dB) ; 40 Hz ~ 20 kHz(-10 dB)

Nominal directivity(-6dB)

80°(cone)

Sensitivity(@1w/1m)

100 dB SPL

Power rating

450 W

Impedance

8 ohm

Maximum SPL

126dB/136dB SPL peak

Transducers

LF:1x15" All Condition Woofer

HF:1x3"Phase Correction HF compression driver

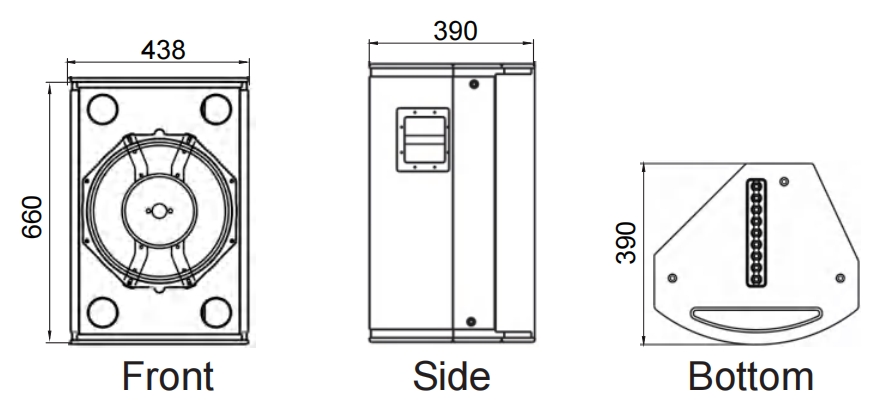

Dimension

438x390x660mm

Weight

29kg

Material

Imported multi-plywood Environmentalwaterproof and anti-corrosion coatings

Finish

Black Polyurea paintings

Cover

Black epoxy mesh grille with acoustically reticulated cloth

Grille

DPR(Double Perforation Rate )technology design, in which theperforation rate of the middle and high transmission area ismore than 90%,Greatly improves the sound

transmissionefficiency and reduces the acoustic crosstalk of the surfacegrid.
