ES-08 Emergency Switche
Features:
※8-ChannelTwo-Channelsignalinput
※Broadcast-levelaudioquality
※Workinglevelupto+24dBu
※Specially design for theradioandtelevision system
※Standard 2U-19" rack body
※Frontandrearpanelscanalsobeinstalledontherack
※Highlyintegrated, ruggedall-metalorganism
※Power failure auto pass-through function automatically switches the main input signal to continuous output in case of power failure.
※Input/Output Signal Type.
1. Analog: Mic Mic/Line line;
2. digital: AES/EBU digital audio signal (16/24Bit, 48k/96kHz, impedance 110Ω)

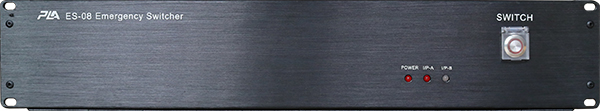

Front panel setting
Toggle Switch
Switch Light
Rear panel setting
I/P-A Signal Input
I/P-B Signal Input
O/P Signal Output
POWER1/2 Dual power supply input
CONTROL external Remote Interface CASCADE cascade control interface
Analog signal | Frequency response | 0dB，20Hz ~ 20kHz 0dB | |
| Signal Type | Mic Mic, Line Line, +28dBu max. | ||
| THD | 0.00035%(0 dBu 1kHz) | ||
| Attenuation loss | 0dB 600 ohm load (in mosthigh impedance input devices, can be considered without attenuation loss | ||
| Digital signal | AES/EBU digital audio signal, impedance 110Ω, 16/24Bit, 48k/96kHz | ||
| Output Short Circuit | 0dB | ||
| Dimensions | 483mmx88mmx328mm | ||
| Weight | 4kg | ||
-
