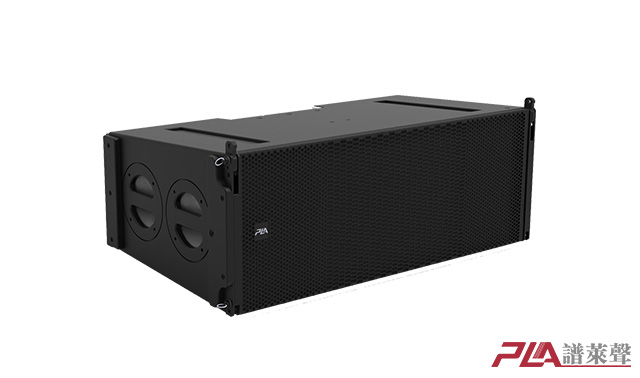

LS212

Application	Feature
Touring Performance Stadium Theatre	Large four-way drive three-way system
	Equipped with WPE wave diameter isometric sound guide
	Middle and high frequency coaxial structure, so that the sound image is accurate
	All neodymium high sensitivity unit,great dynamic margins
	With WCT (Wavefront Coupling Technology)
	With APS angle preset function
	With FMM monitor mode technology and +15° front panel angle adjustment

Technical specification

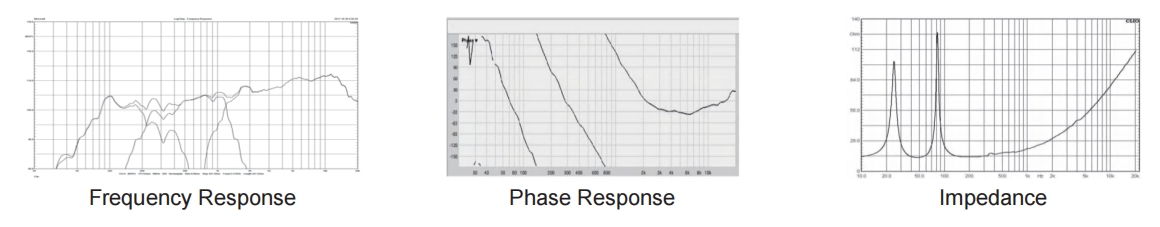

Frequency Respond	50 Hz ~ 20 kHz(±3 dB)；40 Hz ~ 20 kHz(-10 dB)
Nominal directivity(-6dB)	100°(H)，8°(V Adjustable)
Sensitivity(@1w/1m)	HF:115 dB SPL MF:103 dB SPL LF:98 dB SPL
Powerating	HF/MF/LF:160/800/900 W
Impedance	HF/MF/LF:16/8/8 ohm
Maximum SPL	HF:137/147 dB SPL peak MF:132/142 dB SPL peak LF:127/137dB SPL peak
Transducers	HF:2x3" (75-core voice coil) Neodymium magnetic compression unit MF:4x6.5" (38-core voice coil) neodymium magnet unit LF:2x12"(75-core voice coil) neodymium magnet unit

Physical data

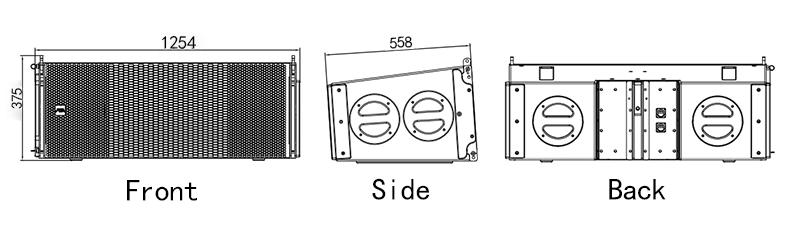

Dimensions	1254x558x375mm
Weight	62kg
Connectors	WP72,Neutrik NL82
Speaker Cables	WP7:1-2+...LF,3-4+...MF, 5-6+...HF NL8:1+1-...LF,2+2-...MF,3+3-...HF,4+4-...NC
Material	Imported multi-plywood Environmentalwaterproof and anti corrosion coatings
Finsh	Black Polyurea paintings
Cover	Black epoxy mesh grille with acoustically reticulated cloth
Angles	0、1、2、3、4、5、6、7、8°Adjustable
