        PRODUCTS

         Home / Products / Detailed

        PS15






        ApplicationsFeature

        Bar

        KTV

        Near-Field Sound

        Elastic bass

        Long throw rubber edge LF driver

        Rotatable 80 x 50°directivity horn

        With PCT(Phase Coherent Technology) technology


        Technical parameters

        Frequency response

        50Hz~ 18 kHz(土3 dB);30 Hz ~ 20 kHz(- 10 dB)


        Nominal directivity(-6dB)80°(H) ×50°（V） Constant directivity
        Sensitivity (@1w/1m)97 dB SPL
        Power Rating

        500W


        Impedance8 ohm
        Maximum SPL123dB/133dB SPL peak
        Transducers

        LF:1x15" All Condition Woofer

        HF:1x3"Phase Correction HF compression driver


        Power lnput
        ConnectorsNEUTRIK NL4MP*2
        Speaker Cables1+1-


        Appearance

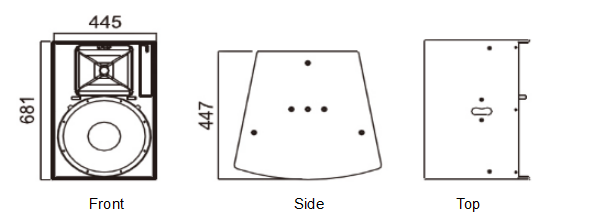

        Dimensions445x447x681mm
        Weight26Kg
        MaterialsImported multi-plywood Environmentalwaterproof and anti-corrosion coatings
        FinishBlack Polyurea paintings
        CoverBlack epoxy mesh grille with acoustically reticulated cloth

        Grille

        DPR(Double Perforation Rate )technology design, in which the perforation rate of the middle and high transmission area is more than 90%,Greatly improves the sound transmission efficiency and reduces the acoustic.
