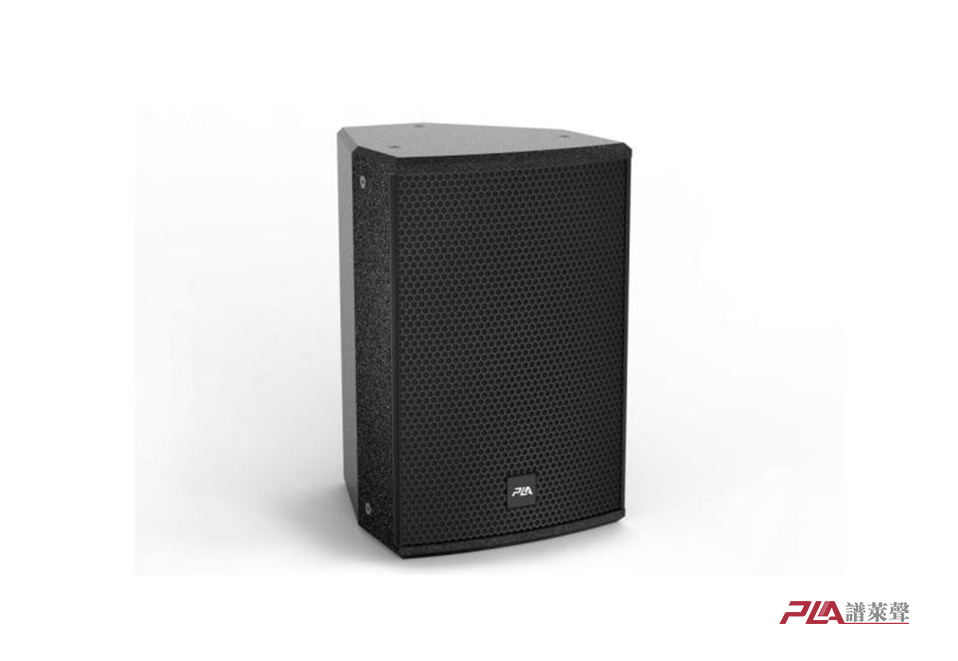

        PM10






        ApplicationsFeature
        Bar
        		Frequency response special design to avoid auditory fatigue
        TheatreRotatable and asymmetrical horn
        Stage Monitor 13x M8 rigging points

        		With PCT(Phase Coherent Technology) technology

        		Pole mount socket


        Technical parameters

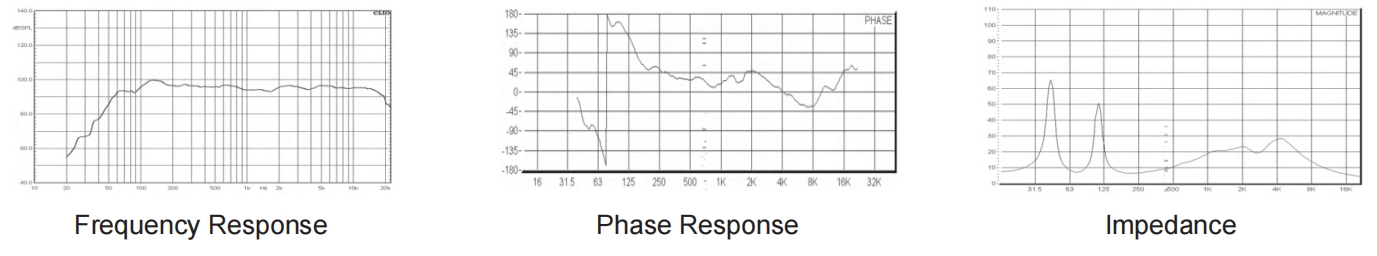

        Frequency response70 Hz-18 kHz(+3dB)  55 Hz-20 kHz(-10dB )
        Nominal Coverage(-6dB)100°(H)×55°(V) Constant directivity
        Sensitivity (@1w/1m)95dB SPL
        Power Rating350W
        Impedance8 ohm
        Maximum SPL120dB/130dB SPL peak
        Transducers

        LF:1x10" All Condition Woofer

        HF:1x1.75"Phase Correction HF compression driver


        Power lnput

        ConnectorsNEUTRIK NL4MP*2
        Speaker Cables1+1-


        Appearance

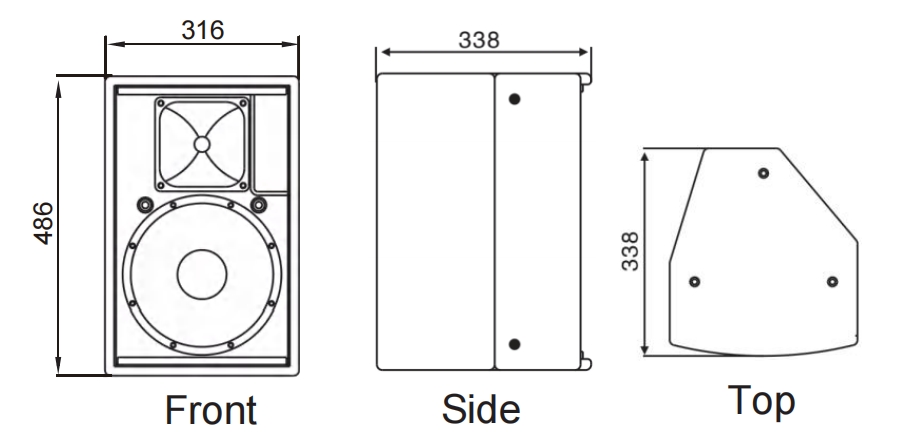

        Dimensions316x338x486mm
        Weight19Kg
        MaterialImported multi-plywood Environmentalwaterproof and anti-corrosion coatings
        FinshBlack polyurea paintings
        CoverBlack epoxy mesh grille with acoustically reticulated cloth
        GrilleDPR(Double Perforation Rate )technology design, in which the perforation rate of the middle and high transmission area is more than 90%,Greatly improves the sound transmission efficiency and reduces the acoustic.
